What causes pressure drop in a steam reformer?

Pressure drop in a steam reformer is typically caused by catalyst breakage, carbon formation, thermal cycling, wetting, or poor catalyst loading practices.

Why does pressure drop matter?

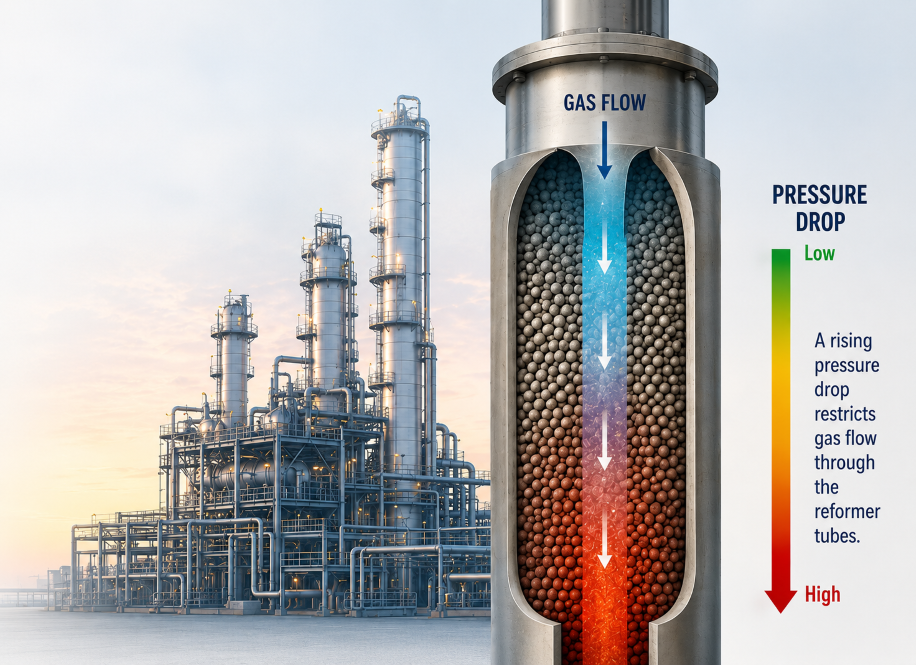

A rising pressure drop restricts gas flow through the reformer tubes. This can reduce plant throughput, increase energy consumption, and create uneven temperature profiles inside the furnace. Over time, excessive pressure drop may lead to:

• Reduced reformer efficiency
• Hot spots inside tubes
• Catalyst overheating
• Increased tube stress
•  Unplanned shutdowns

How can pressure drop be reduced?

The best way to minimize pressure drop problems is to combine:

• High-strength catalyst design
• Uniform Unidense® loading
• Controlled catalyst handling
• Proper startup and shutdown procedures

UNIDENSE® loading technology helps create a more homogeneous catalyst bed, improving flow distribution and reducing the risk of long-term pressure drop increase.

Why is Unidense® loading better than traditional catalyst loading?

Unidense® loading creates a more uniform catalyst bed with consistent packing density, resulting in improved flow distribution, lower pressure drop variation, and longer catalyst life.

What happens with traditional loading methods?

Traditional loading methods can create uneven packing density, voids inside the catalyst bed, flow maldistribution and create a higher risk of catalyst settling. These inconsistencies may reduce reformer efficiency and increase operational instability over time.

What are the benefits of Unidense® loading?

Dense loading technologies such as UNIDENSE® provide:

• More uniform catalyst distribution
• Improved pressure drop consistency
• Reduced methane slip
• Better reformer performance
• Longer catalyst and tube life

The result is a more stable and reliable reformer operation.

How does poor catalyst loading damage reformer performance?

Improper catalyst loading can create uneven gas flow, catalyst breakage, and localized overheating inside reformer tubes.

Why is loading quality so important?

Steam reformers may contain up to 950 of catalyst-filled tubes operating under extremely demanding conditions. If catalyst density varies from tube to tube, the process gas will not flow evenly through the reformer. This can create:

• Temperature imbalances
• Tube hot spots
• Increased pressure drop
• Reduced catalyst efficiency
• Faster catalyst degradation

How can these problems be prevented?

Consistent catalyst loading is essential.Advanced dense loading systems help ensure:

• Uniform packing density
• Controlled catalyst settling
• Reduced catalyst damage during loading
• Stable long-term reformer performance

How does the UNILOADER® reduce nickel dust exposure?

The UNILOADER® reduces nickel dust exposure by automating catalyst loading and integrating enclosed dust extraction during handling operations.

Why is nickel dust exposure a concern?

Nickel-containing catalyst dust can present occupational health risks when inhaled during loading and unloading activities. Airborne dust exposure may occur through manual handling activities such as:

• Bucket filling
• Catalyst transfer
• Funnel loading
• Weighing operations

How does automation improve safety?

The UNILOADER® system helps reduce exposure and create a safer loading environment. It also improves loading consistency and operational efficiency through:

• Enclosed loading operation
• Integrated dust extraction
• Reduced manual handling
• Fewer personnel at the tube top
• Controlled catalyst flow

Why is loading consistency important in steam reformers?

Consistent catalyst loading ensures even gas flow and temperature distribution across all reformer tubes.

What happens when loading densities vary?

If some tubes are packed differently than others, gas flow becomes uneven.This can lead to higher tube temperatures,
uneven reforming reactions and reduced efficiency. Also increased mechanical stress and faster tube aging are common results of uneven catalyst loading.


How does Unidense® loading help?

Unidense® loading technology improve tube-to-tube consistency by carefully controlling catalyst distribution during loading.This supports:

• Stable reformer operation
• Improved process efficiency
• Lower operational risk
• Extended equipment life

How does catalyst breakage increase pressure drop?

When catalyst pellets break into smaller fragments, the open space inside the reformer tube decreases, restricting gas flow and increasing pressure drop.

Why do catalyst pellets break?

Catalyst breakage can occur due to thermal cycling, mechanical stress, carbon formation and poor and improper catalyst handling.

Why do fragment sizes matter?

Small catalyst fragments create tighter packing and greater flow resistance. Modern catalyst and loading technologies are designed to reduce catalyst damage and minimize fragmentation, to ensure a stable pressure drop over time. UNIDENSE® loading technology helps reduce catalyst impact during loading, lowering the risk of unnecessary breakage.

Why is catalyst handling important for reformer reliability?

Proper catalyst handling helps protect catalyst integrity, reduce dust formation, and improve long-term reformer performance.

What are the risks of poor handling?

Incorrect handling can lead to catalyst breakage and dust generation. Another important risk is uneven loading, resulting in increased pressure drop and reduced catalyst runtime.

What are best practices for catalyst handling?

Modern catalyst handling best practices include:

• Automated Unidense® loading
• Dust extraction systems
• Controlled catalyst transfer
• Proper PPE procedures
• Reduced manual handling

Combining optimized handling procedures with advanced loading technologies helps improve both operational reliability and worker safety.
